Sản phẩm |
Bo mạch chủ |
|
Tên Hãng |
Asrock |
|
Model |

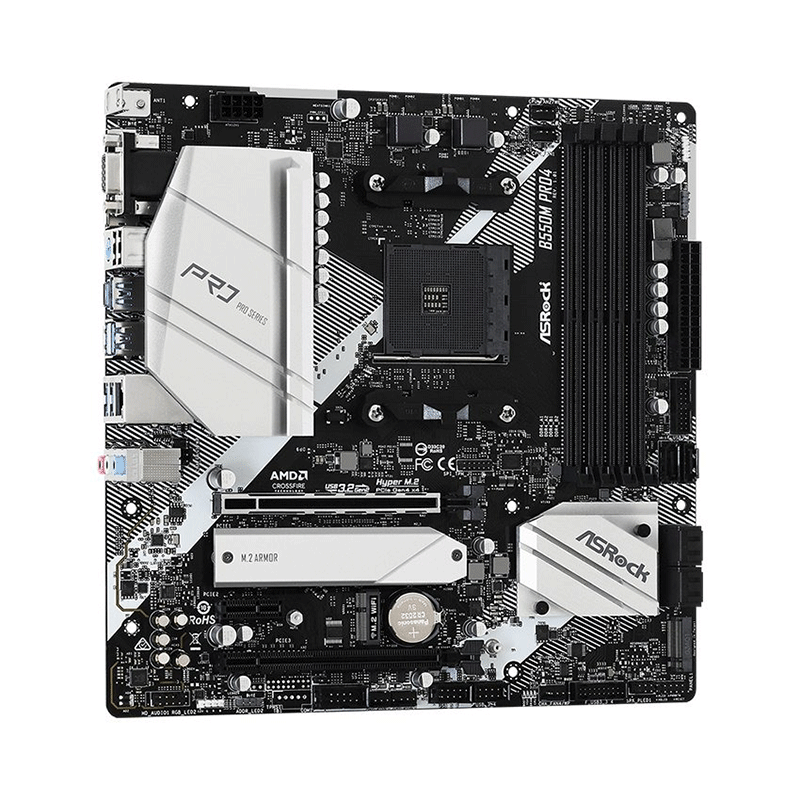

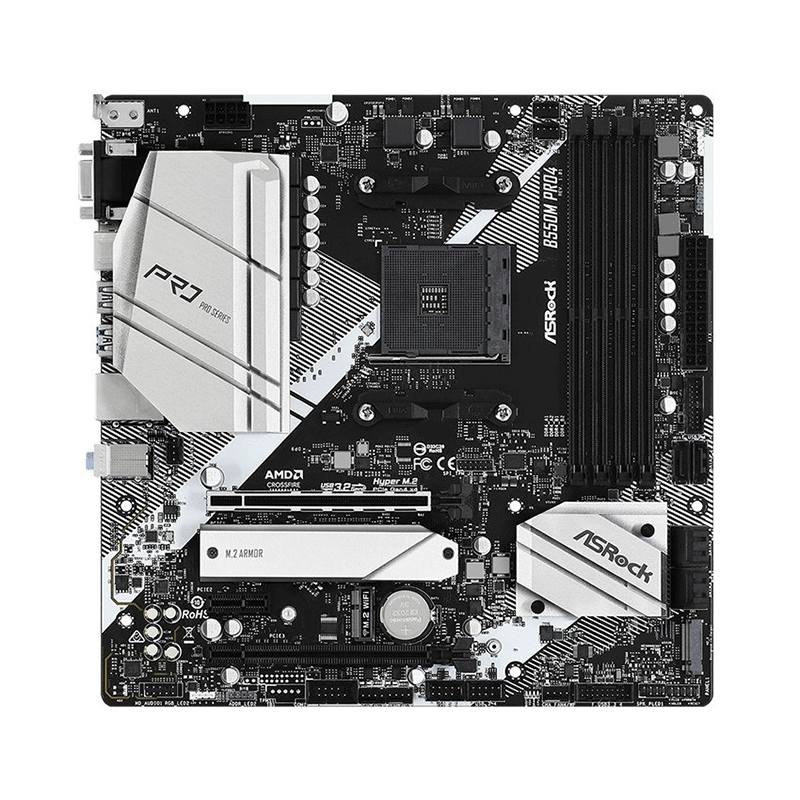

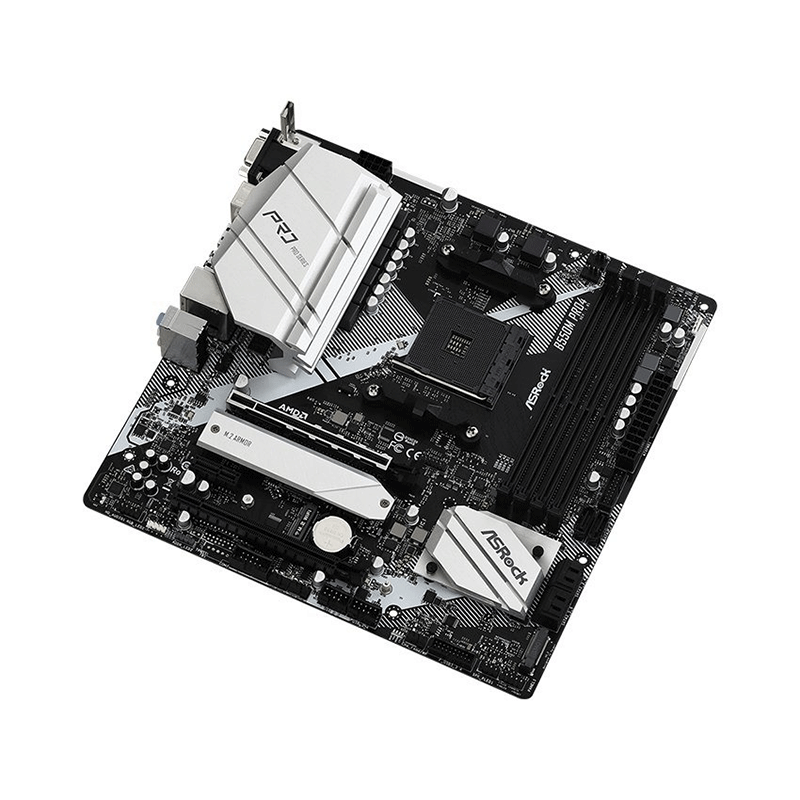

B550M Pro4 |
|
CPU hỗ trợ |
AMD |
|
Chipset |
B550 |
|
RAM hỗ trợ |
4 x DDR4 DIMM Slots ( 128GB ) |
|
Khe cắm mở rộng |
2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)*
AMD Ryzen series APUs
2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)*
1 x PCI Express 3.0 x1 Slot
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module |
|
Ổ cứng hỗ trợ |
6 x SATA3 6.0 Gb/s
1 x Hyper M.2 Socket (M2_1)
1 x M.2 Socket (M2_2) |
|
Cổng kết nối (Internal) |
1 x COM Port Header
1 x SPI TPM Header
1 x Power LED and Speaker Header
2 x RGB LED Headers*
2 x Addressable LED Headers**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) |
|
Cổng kết nối (Back Panel) |
Antenna Bracket
1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection)
2 x USB 2.0 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone |
|
LAN / Wireless |
PCIE x1 Gigabit LAN 10/100/1000 Mb/s |
|
Kích cỡ |
Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
