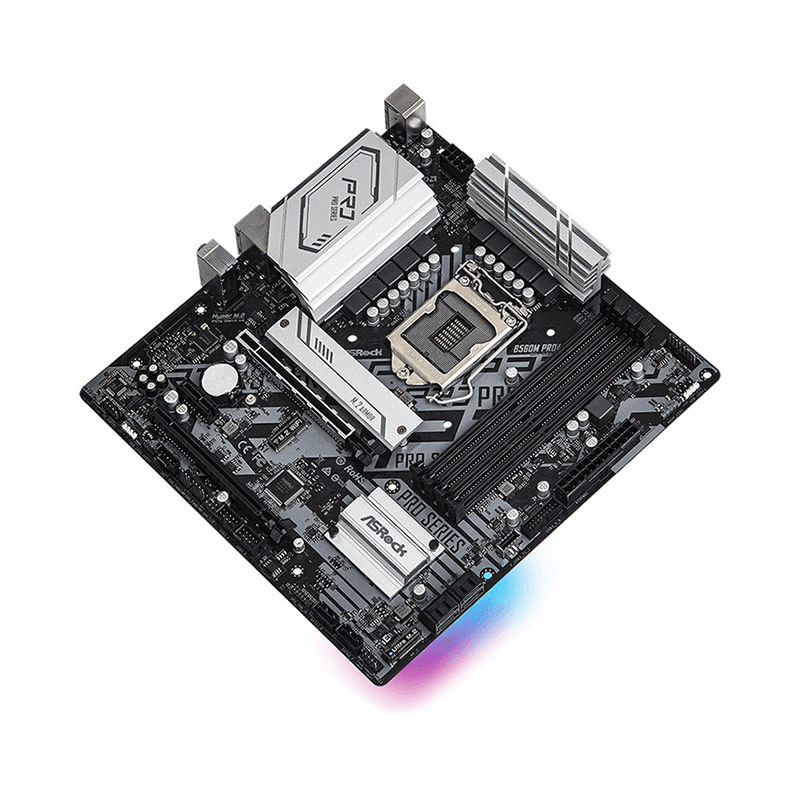

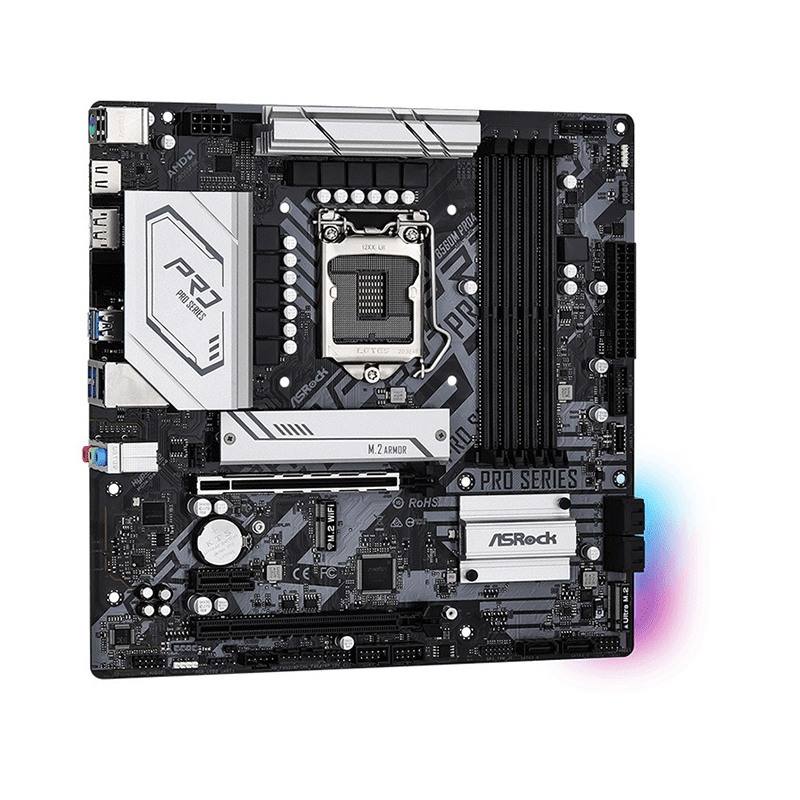

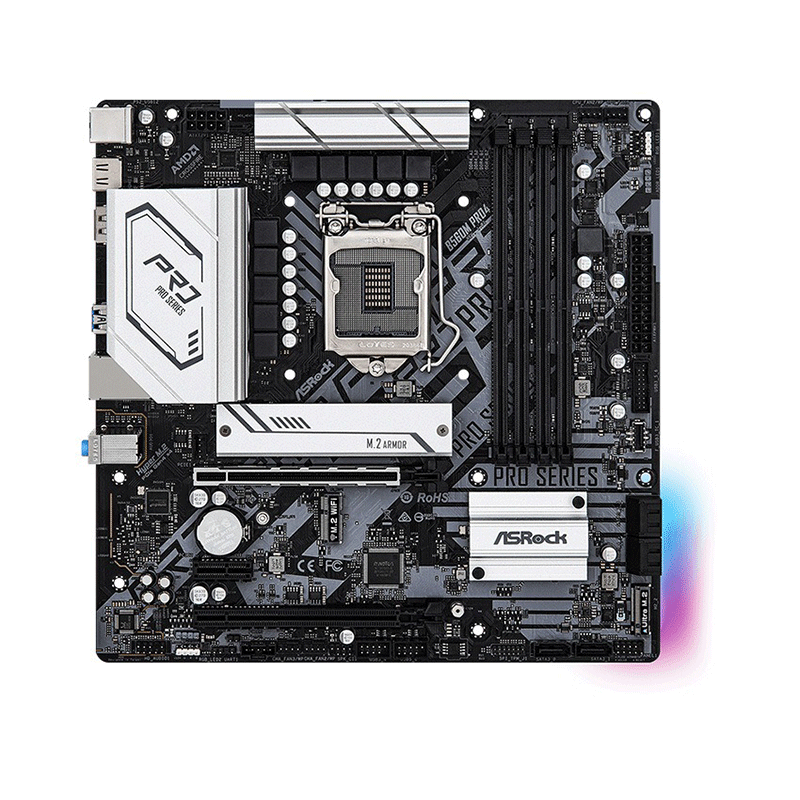

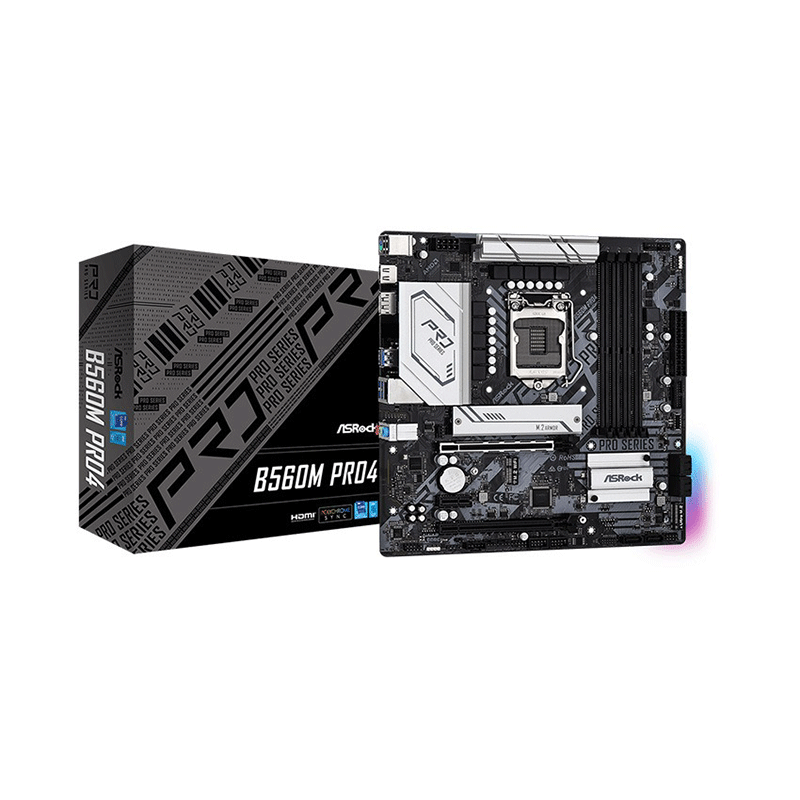

| Sản phẩm | Bo mạch chủ |
| Tên Hãng | ASROCK |
| Model | B560M PRO4 |
| CPU hỗ trợ | Hỗ trợ cho thế hệ thứ 10&11 Intel® Core Socket LGA1200 |
| Chipset | B560 |
| RAM hỗ trợ | 4 x DDR4 DIMM, tối đa 128GB - 11th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)* - 10th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4600+(OC)* |
| Khe cắm mở rộng | 11th Gen Intel® Core™ Processors - 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3))* 10th Gen Intel® Core™ Processors - 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x4 (PCIE3))* - 1 x PCI Express 3.0 x1 Slot - Supports AMD Quad CrossFireX™ and CrossFireX™ - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel® CNVi (Integrated WiFi/BT) |
| Ổ cứng hỗ trợ | - 6 x SATA3 6.0 Gb/s Connectors, support Intel® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug* - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Only supported with 11th Gen Intel® Core™ Processors) ** - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** |
| Cổng kết nối (Internal) | - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 2 x RGB LED Headers* - 2 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection) |

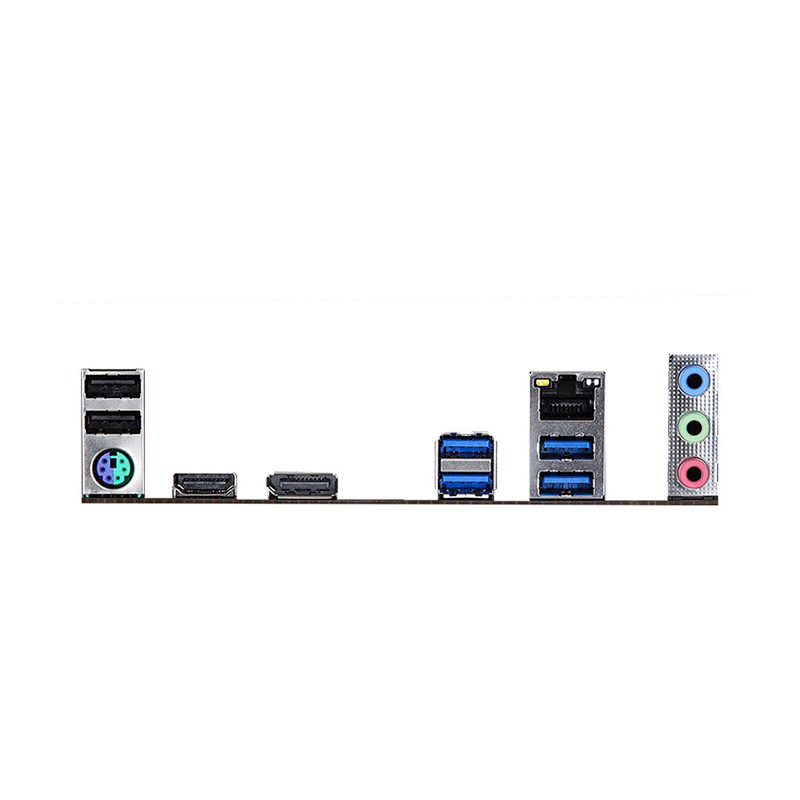

| Cổng kết nối (Back Panel) | - 3 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone |
| LAN / Wireless | Gigabit LAN 10/100/1000/2500 Mb/sIntel® 802.11ac WiFi Module |
| Kích cỡ | Micro ATX Form Factor: 9.6 inch x 9.6 inch (24.4cm x 24.4cm) |
