Sản phẩm |
Bo mạch chủ |
|
Tên Hãng |
Asus |
|
Model |
ROG STRIX B660-G GAMING WIFI DDR5 |
|
CPU hỗ trợ |
Intel |
|
Chipset |
B660 |
|
RAM hỗ trợ |
4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(OC)/ Non-ECC, Un-buffered Memory* |
|
Khe cắm mở rộng |
Intel® 12th Gen Processors 1 x PCIe 5.0 x16 slot(s) Intel® B660 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2x PCIe 4.0 x1 slots |
|
Ổ cứng hỗ trợ |
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel® 12th Gen processors support PCIe 4.0 x4 mode. Intel® B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) 4 x SATA 6Gb/s ports |
|
Cổng kết nối (Internal) |
Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin AIO Pump header(s) 2 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™ header |
|

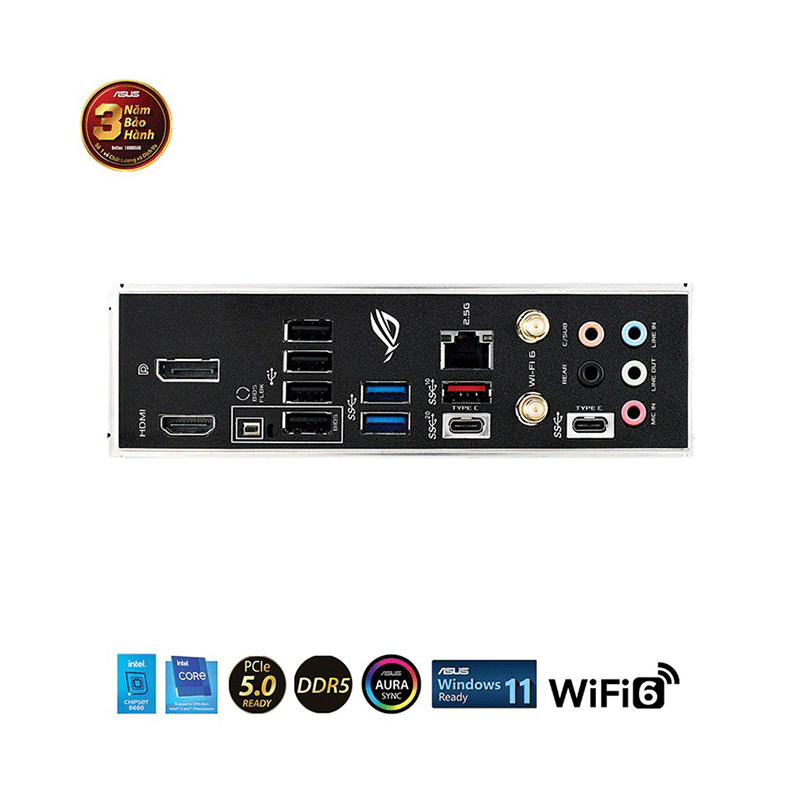

Cổng kết nối (Back Panel) |
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 3 x USB 3.2 Gen 1 port(s) (2 x Type-A, 1 x USB Type-C®) 4 x USB 2.0 port(s) (4 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button |
|
LAN / Wireless |
LAN: 1 x Intel® 2.5Gb Ethernet "Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2" |
|
Kích cỡ |
mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
