| Thương Hiệu |
Asus |
| Model |

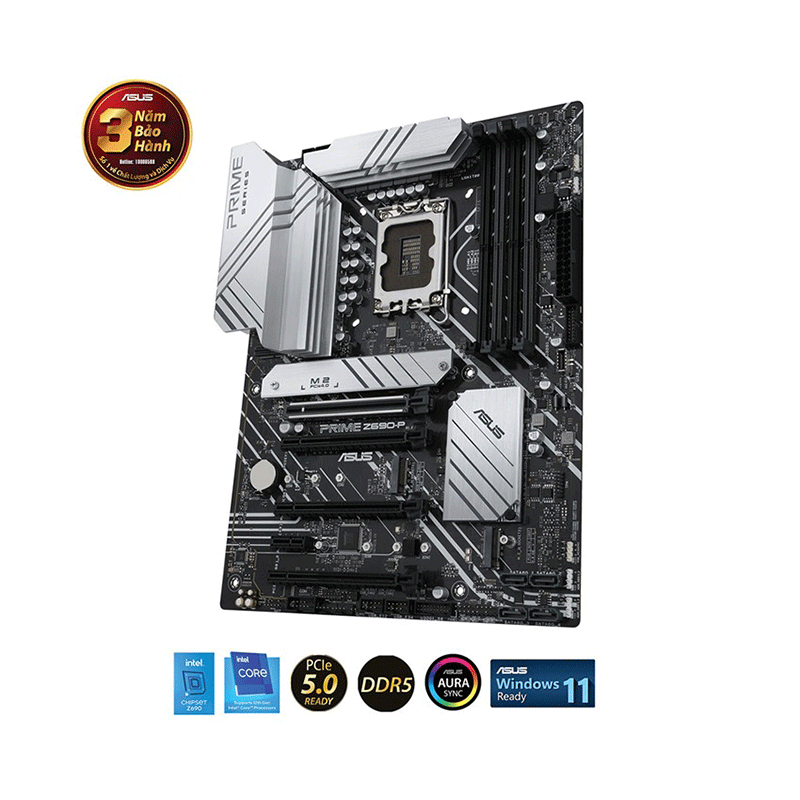

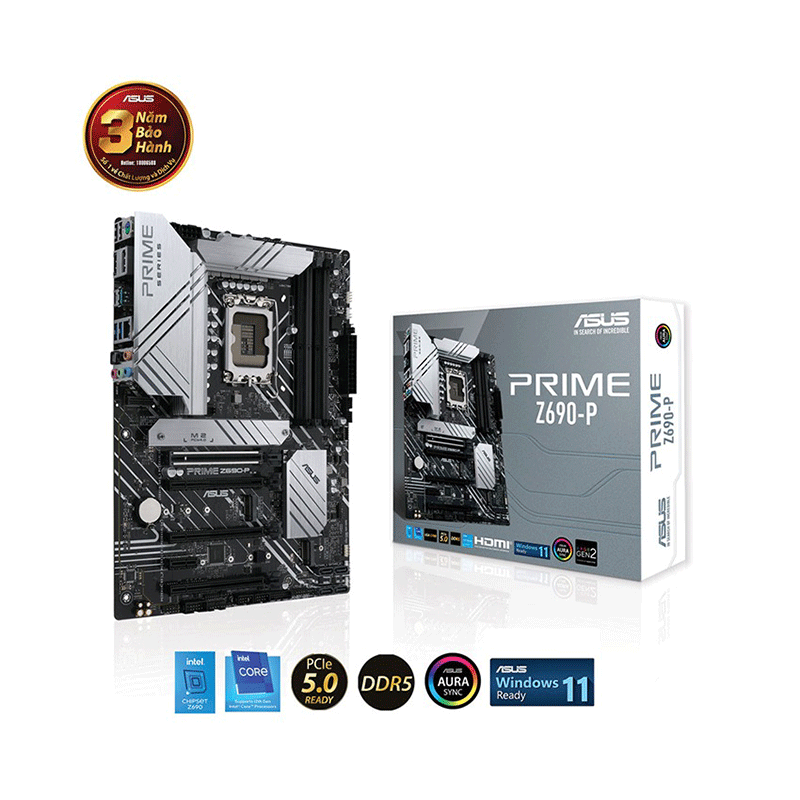

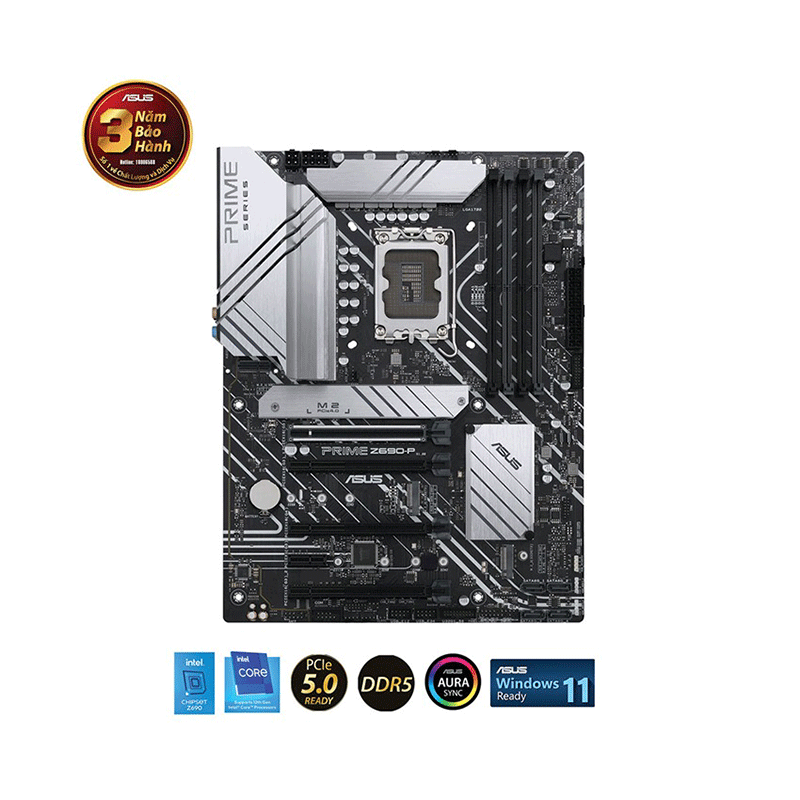

PRIME Z690-P-CSM |
| Kích Cỡ |
ATX |
| CPU Socket |
LGA1700 |
| Chipset |
Z690 |
| Số Khe Ram |
4 x DIMM |
| Bus Ram Hỗ Trợ |
DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory |
| Dung Lượng Ram Tối Đa Hỗ Trợ |
128GB |
| Số Kênh Bộ Nhớ Hỗ Trợ |
Dual Channel |
| PCI Express 3.0 x16 |
1 x PCIe 5.0/4.0/3.0 x16 slot 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x16 slots (support x4 mode) |
| PCI Express x1 |
1 x PCIe 3.0 x1 slot |
| Số Cổng SATA |
4 x SATA 6Gb/s ports |
| M.2 |
3 x M.2_slot |
| SATA RAID |
RAID 0/1/5/10 |
| Chip Xử Lý Âm Thanh |
Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Số Kênh Âm Thanh |
7.1 |
| LAN Chipset |
LANGuard |

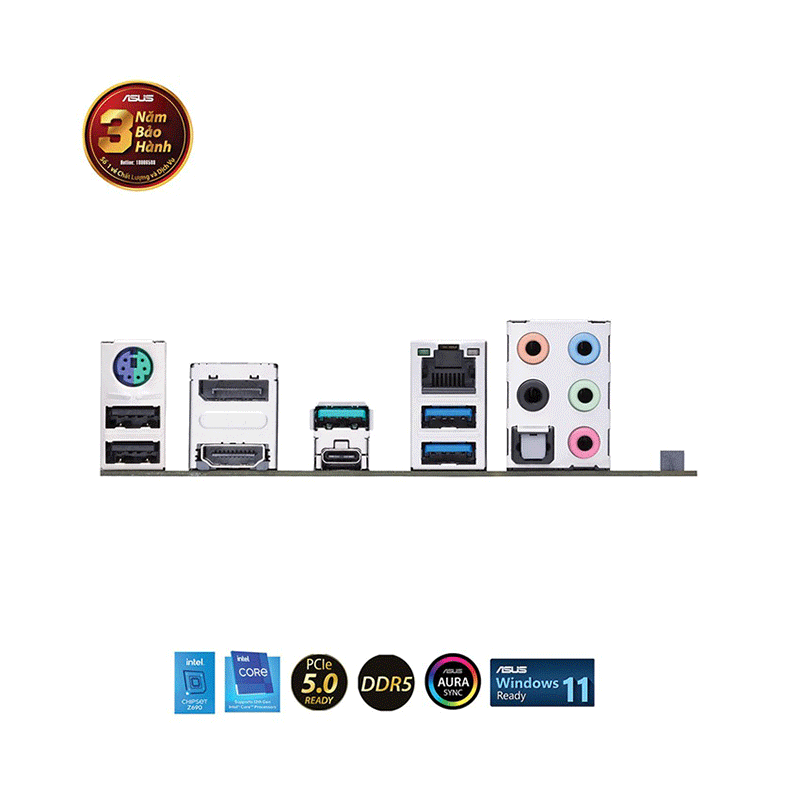

| Cổng I/O Phía Sau |
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x V-M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x PS/2 Keyboard/Mouse combo port |
| Onboard USB |
1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Cổng Kết Nối Khác |
1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-5pin System Panel header 1 x Thunderbolt™ header |
| Đèn LED Đi Kèm |
3 x Addressable Gen 2 headers 2 x AURA RGB headers |

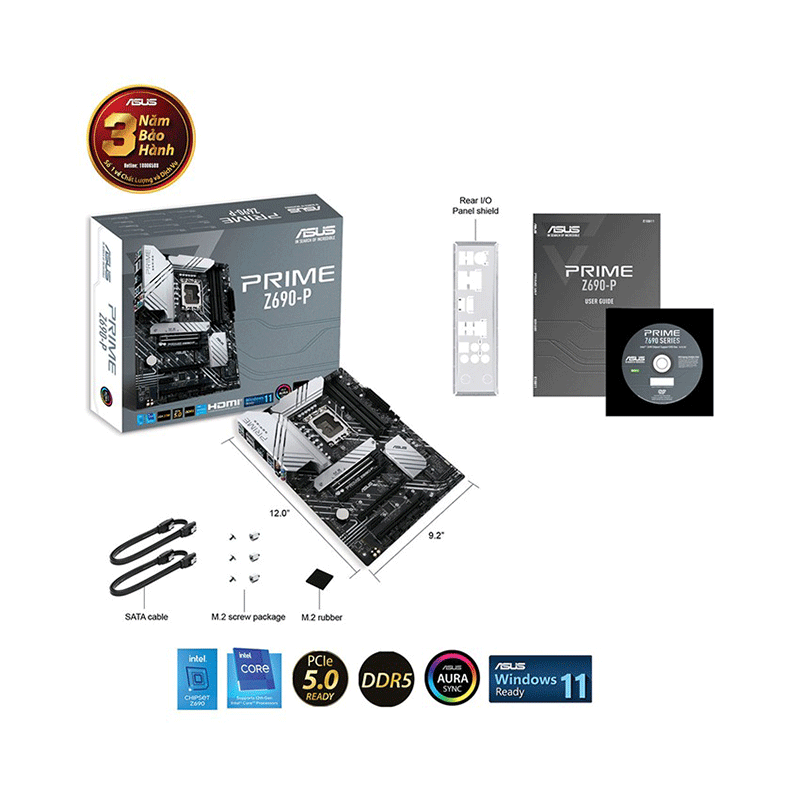

| Kích Thước (W x L) |
30.5cm x 23.4cm |
| Chân Cắm Nguồn |
1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector |
