CPU |
Intel® Socket LGA1200 cho chip set thế hệ 10th và 11th |
|
Turbo Boost Max 3.0 Technology |
|
|
Chipset |
Intel® Z590 |
|
Ram |
Số slot hỗ trợ: 4 |
|
Ram hỗ trợ tối đa: 128GB |
|
|
Dual-Channel Memory Architecture |
|
|
OC Frequency (Cho Chip thế hệ 11th) 4600+ MHz |
|
|
OC Frequency (Cho Chip thế hệ 10th) 4400+ MHz |
|
|
Base Frequency (Cho Chip thế hệ 11th) 3200 / 2933 / 2800 / 2666 / 2400 / 2133 MHz |
|
|
Base Frequency (Cho Chip thế hệ 10th) 2933 / 2800 / 2666 / 2400 / 2133 MHz |
|
|
Non-ECC, Un-buffered Memory |
|
|
Intel® XMP 2.0 Support |
|
|
Cổng xuất hình |
Intel® Xe Graphics (11th Gen CPUs) / UHD (10th Gen CPUs) HDMI 2.0 / HDMI 1.4b |
|
HDMI hỗ trợ xuất hình tối đa: 4096x2160@60Hz |
|
|
Multi-GPU Support |
AMD 2-Way CrossFireX™ Technology |
|
Khe cắm mở rộng |
PCIe x16 (x16 mode): 1 (Hỗ trợ chip set thế hệ 11th - PCIe 4.0, Hỗ trợ chip set thế hệ 10th - PCIe 3.0) |
|
PCIe x16 (x4 mode): 1 |
|
|
PCIe 3.0 x1: 3 |
|
|
Bộ nhớ lưu trữ |
M.2 Type 2242/2260/2280 (PCIe x4 mode) :1 (11th Gen CPUs - PCIe 4.0, 10th Gen CPUs - PCIe 3.0) |
|
M.2 Type 2242/2260/2280 (PCIe 3.0 x4 & SATA mode): 1 |
|
|
SATA 6Gb/s: 4 |
|
|
RAID 0/1/5/10 Support |
|
|
Intel® Smart Response Technology |
|
|
Intel® Rapid Storage Technology |
|
|
Intel® Optane Memory |
|
|
LAN |
Realtek® RTL8125BG 2.5G |
|
Wireless |
Intel® Dual-Band Wireless |
|
Protocol: 802.11 a/b/g/n/ac/ax |
|
|
Frequency Bands: 2.4 / 5 / 6 GHz |
|
|
MU-MIMO Support |
|
|
Bluetooth: V5.2 |
|
|
Audio |
Realtek® ALC1220 Codec |
|
Channels: 8-Channel High Definition Audio |
|
|
Playback 32-bit / 192kHz DAC |
|
|
Capacitors Nichicon Fine Gold Series |
|
|

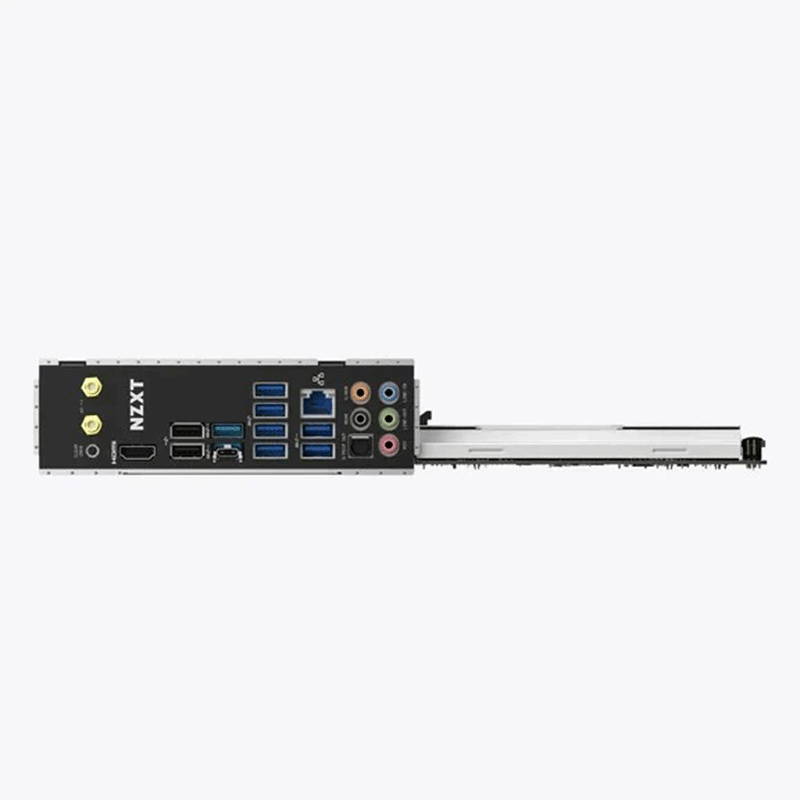

Cổng I/O phía sau |
USB 3.2 Gen 2x2 (Type-C): 1 |
|
USB 3.2 Gen 2 (Type-A): 3 |
|
|
USB 3.2 Gen 1 (Type-A): 4 |
|
|
USB 2.0: 2 |
|
|
HDMI™ 2.0: 1 |
|
|
Wireless Antenna: 2 (2T2R) |
|
|
LAN (RJ45) Port: 1 |
|
|
5.1-Channel Audio Jacks: 1 |
|
|
Optical S/PDIF :1 |
|
|
Clear CMOS Button: 1 |
|
|
Cổng I/O bên trong |
M.2 (M Key), Type 2242/2260/2280: 1 (PCIe 4.0/3.0 x4 mode), 1 (PCIe 3.0 x4 & SATA mode) |
|
M.2 (E Key) (For wireless cards): 1 |
|
|
SATA 6Gbps Ports: 4 |
|
|
USB 3.2 Gen 2 Header (Type-C): 1 |
|
|
USB 3.2 Gen 1 Header: 2 (Up to 4 ports) |
|
|
USB 2.0 Header: 3 (Up to 6 ports) |
|
|
Front Panel Audio: 1 |
|
|
CPU FAN Connector: 1 (Up to 24W) |
|
|
AIO PUMP Connector: 1 (Up to 24W) |
|
|
SYS FAN Connector: 5 (Up to 24W) |
|
|
NZXT RGB LED Header: 2 |
|
|
5V ARGB Header: 1 |
|
|
12V RGB Header: 1 |
|
|
24-pin EATX Power: 1 |
|
|
8-pin ATX 12V Power: 1 |
|
|
4-pin ATX 12V Power: 1 |
|
|
Nút nguồn: 1 |
|
|
Nút reset: 1 |
|
|
POST LEDs: 4 |
|
|
Thông tin chung |
Hệ điều hành: Windows® 10 64-bit |
|
Kích thước thiết kế: ATX |
|
|
Thời gian bảo hành: 3 năm |
|
|
Model Number: N7-Z59XT-W1 |
|
|
UPC: 815671015211 |
|
|
EAN:5060301696666 |
