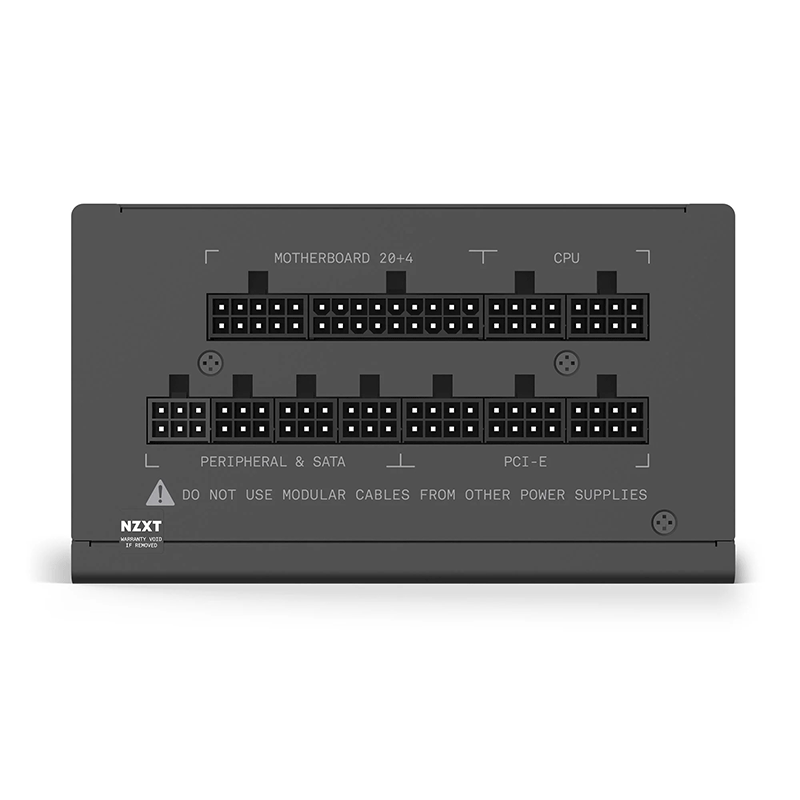

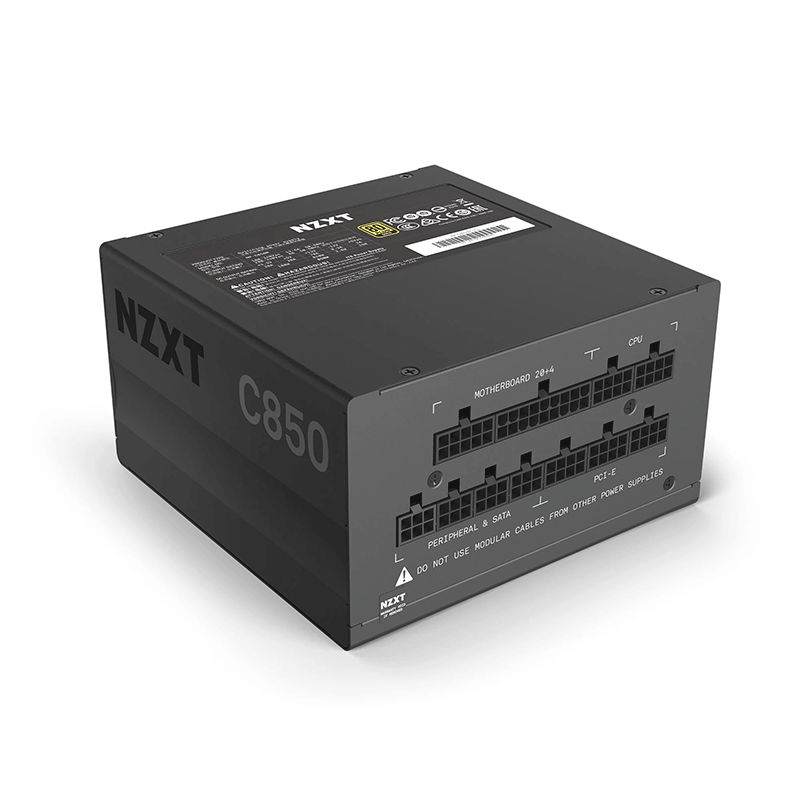

Output Connectors
|
24-pin ATX power |
1 |
| 4+4-pin CPU power |
2 |
| 6+2-pin PCIe power |
6 |
| SATA power |
8 |
| Peripherals |
6 |
Cable Specs
|
24-pin ATX power |
610 mm, Nylon sleeving |
| 4+4-pin CPU power |
650 mm, Nylon sleeving |
| 6+2-pin PCIe power |
675 + 75mm, Nylon sleeving |
| SATA power |
500 + 100 + 100 + 100 mm |
| Peripherals |
500 + 100 + 100 mm |
| AC Input Rating |
100-240Vac |
12-6A, 50-60Hz |
| DC Output Rating |
+3.3V and +5V |
20A (Combined 100W) |
| +12V |
70A (840W) |
| -12V |
0.3A (3.6W) |
| 5Vsb |
3A (15W) |
| Total |
850W |
| Operation
|
PF Correction |
Active @0.99 |
| MTBF |
100,000 hours |
| Temperature |
0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C) |
| Energy Efficiency |
Rating |
80 Plus Gold |
| 20% loading |
87% @115Vac |
| 50% Loading |
90% @115Vac |
| 100% Loading |
87% @115Vac |

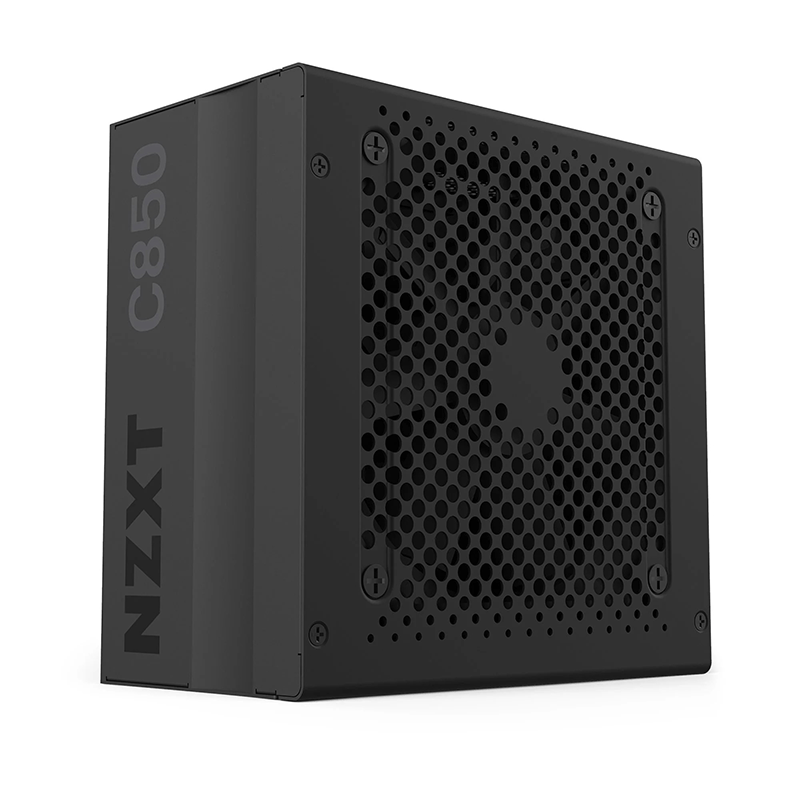

| Fan Specs |
Dimensions |
120 x 120 x 25mm |
| Speed |
0 - 2,200 ± 200RPM |
| Airflow |
73.9 CFM |
| Noise |
32.3 dBA |
| Bearing |
Fluid Dynamic Bearing (FDB) |
| General |
Dimensions |
150 x 150 x 86 mm |
| Material(s) |
Steel, PCB and plastic |
| Compliance Standard |
ATX12V v2.4 / EPS12V v2.92 |
| Regulation & Certification |
CB / CE / FCC / TUV / cTUV-SUDus / China CCC / Taiwan BSMI / Australia RCM / EAC |
| Warranty |
10 years |
| Model Number |
NP-C850M |
